Select

Picks one value from a list: groups, icons, type to find, and long lists.

Select, as it looks in an app Select, as it looks in an app, dark
import 'package:flutter/widgets.dart';

import 'ui/select.dart';

class SelectDemo extends StatefulWidget {
  const SelectDemo({super.key});

  @override
  State<SelectDemo> createState() => _SelectDemoState();
}

class _SelectDemoState extends State<SelectDemo> {
  String? county;

  @override
  Widget build(BuildContext context) => SizedBox(
    width: 220,
    child: Select<String>(
      value: county,
      placeholder: 'Choose a county',
      semanticLabel: 'County',
      options: const [
        SelectOption('nbo', 'Nairobi'),
        SelectOption('msa', 'Mombasa'),
        SelectOption('ksm', 'Kisumu'),
        SelectOption('nku', 'Nakuru'),
        SelectOption('eld', 'Uasin Gishu'),
      ],
      onChanged: (v) => setState(() => county = v),
    ),
  );
}

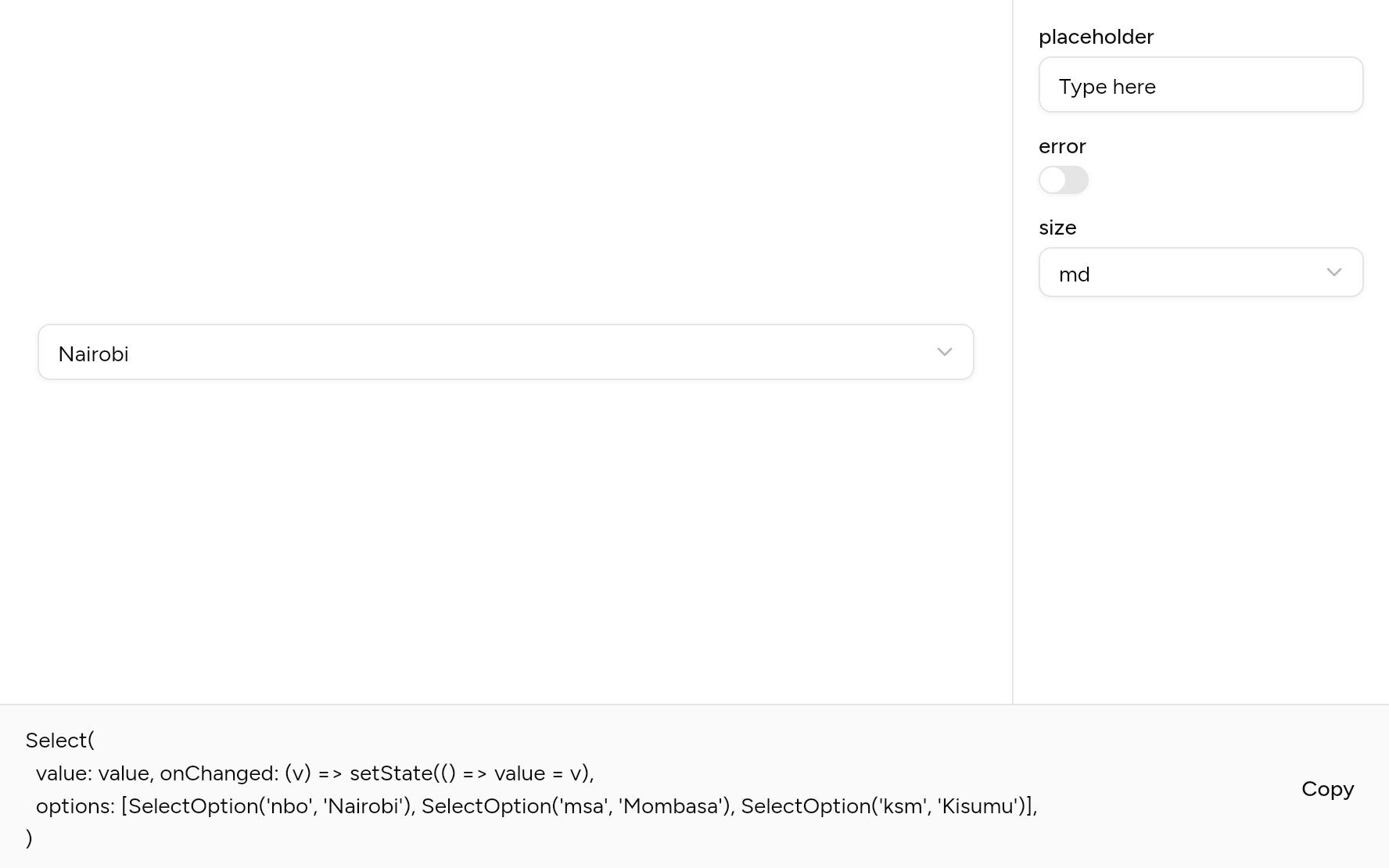

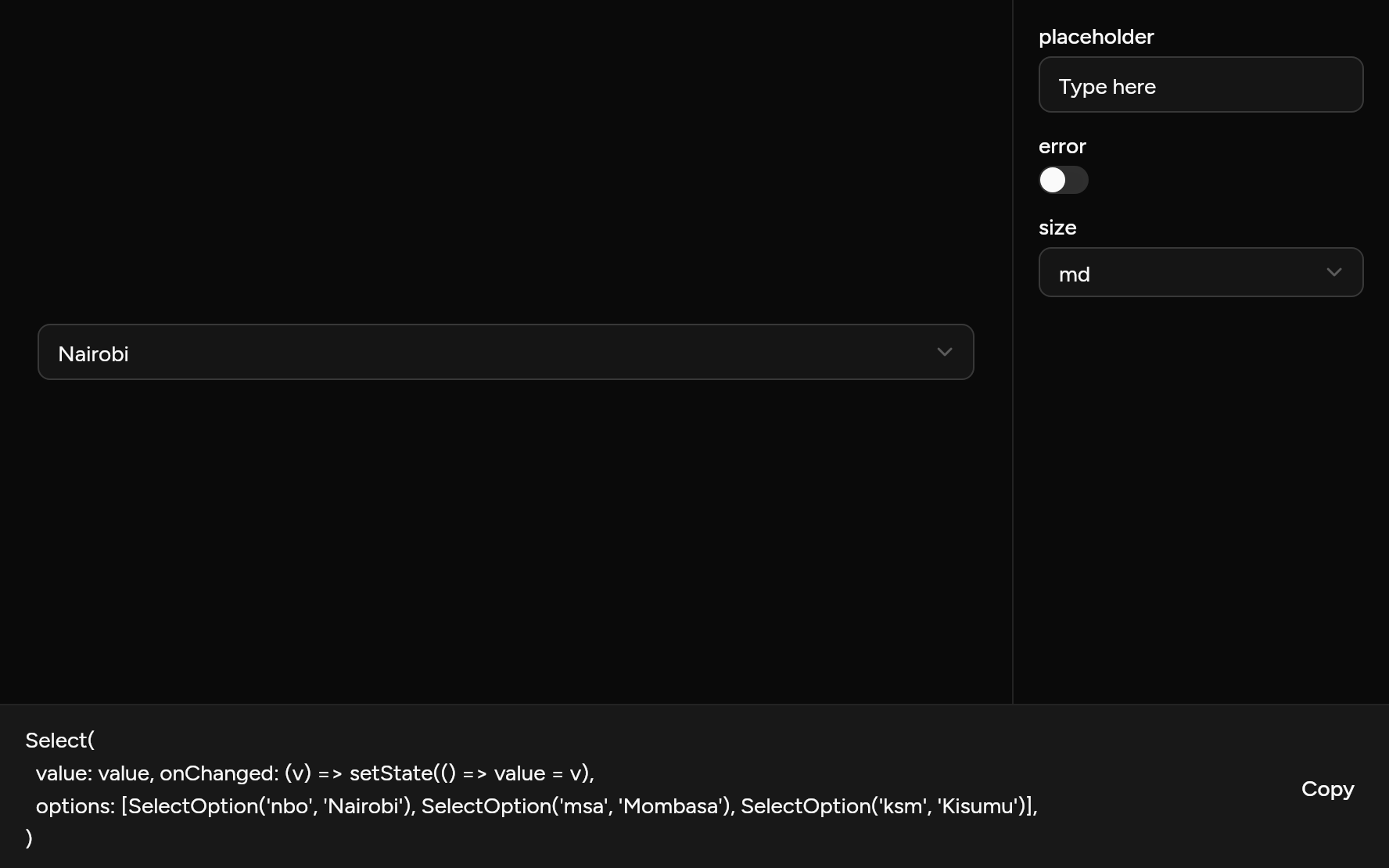

Try its options

Each option its constructor takes, to change and see; the code below it is what you chose, to copy.

Select with controls, as it looks in an app Select with controls, as it looks in an app, dark

Add it

In your Flutter project:

$ ashlar add select

It writes theme.dart, palette.dart, group.dart, pressable.dart, popover.dart and select.dart into lib/ui, keeping any you already have, and adds ashlar_icons to pubspec.yaml. It needs pressable, popover and ashlar_icons, which come with it.

Examples

Other ways to use it, each running live, with its code.

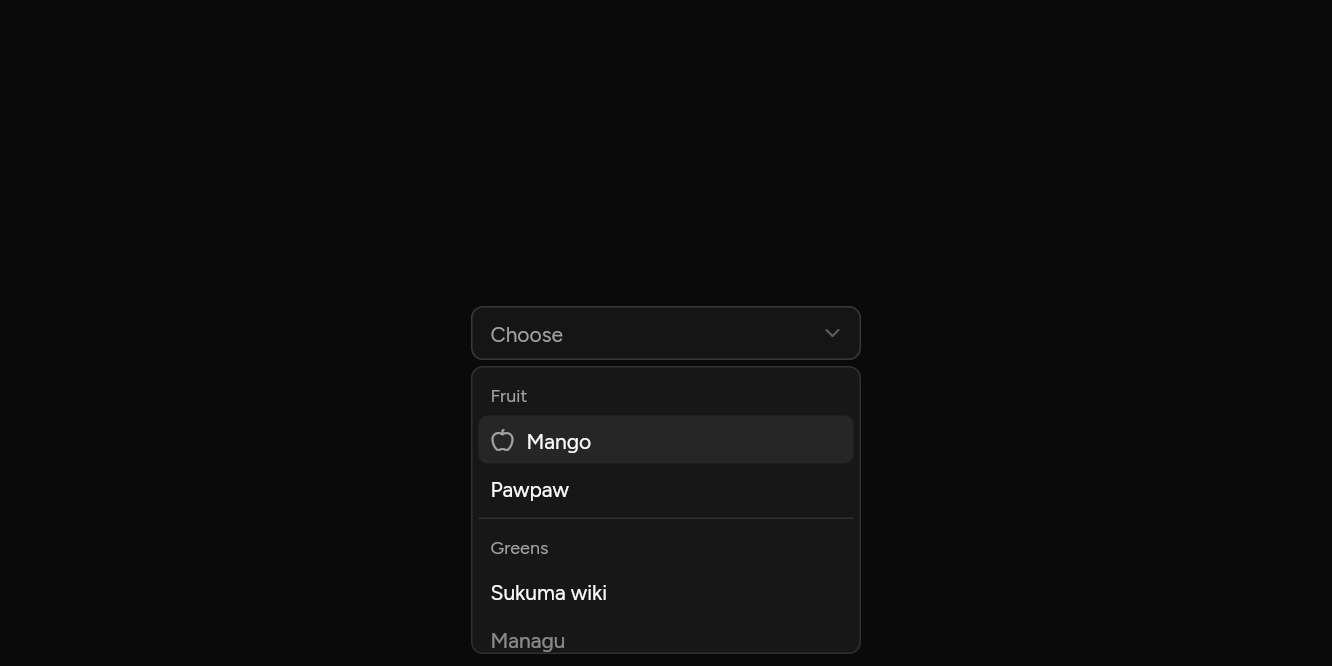

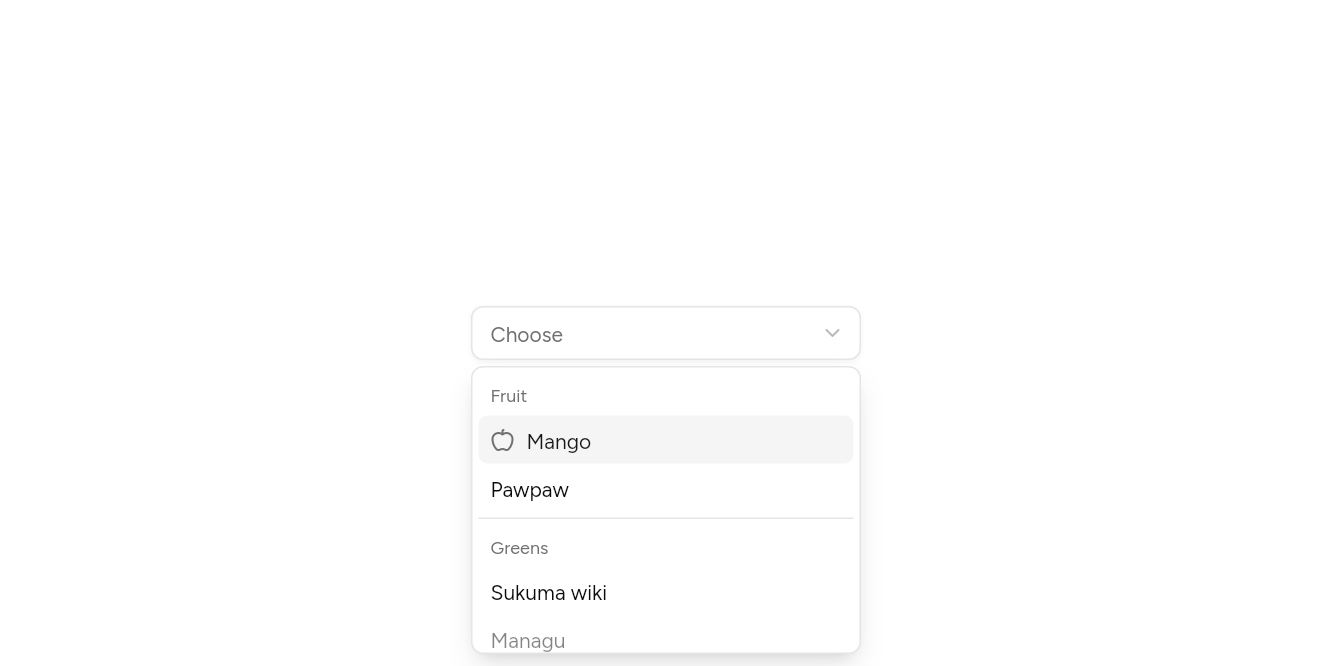

Groups and icons

Options under headings, each with an icon.

Groups and icons, as it looks in an app Groups and icons, as it looks in an app, dark
// Groups and icons: Options under headings, each with an icon.
import 'package:ashlar_icons/ashlar_icons.dart';
import 'package:flutter/widgets.dart';

import 'ui/select.dart';

class SelectGroupsExample extends StatefulWidget {
  const SelectGroupsExample({super.key});

  @override
  State<SelectGroupsExample> createState() => _SelectGroupsExampleState();
}

class _SelectGroupsExampleState extends State<SelectGroupsExample> {
  String? fruit;

  @override
  Widget build(BuildContext context) => SizedBox(
    width: 260,
    child: Select<String>(
      value: fruit,
      placeholder: 'Choose',
      onChanged: (v) => setState(() => fruit = v),
      options: const [
        SelectOption('mango', 'Mango', group: 'Fruit', icon: AshlarIcon(AshlarIconsRoundedStroke.apple)),
        SelectOption('pawpaw', 'Pawpaw', group: 'Fruit'),
        SelectOption('sukuma', 'Sukuma wiki', group: 'Greens'),
        SelectOption('managu', 'Managu', group: 'Greens', enabled: false),
      ],
    ),
  );
}

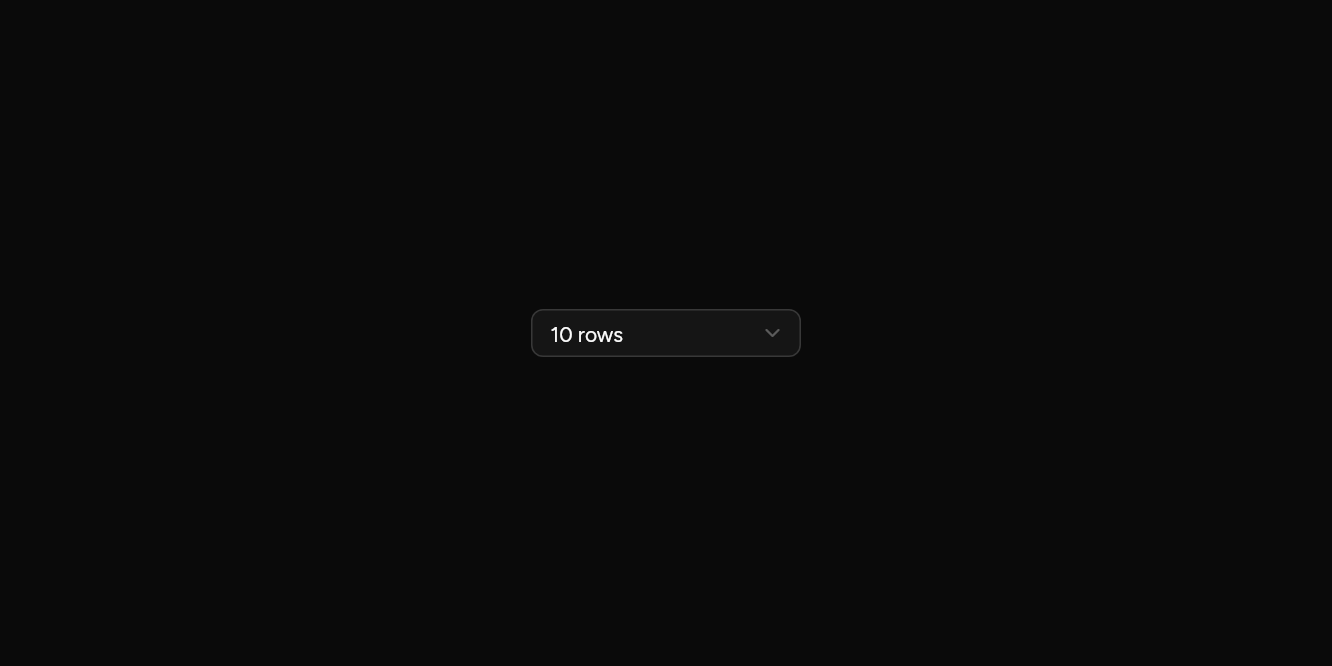

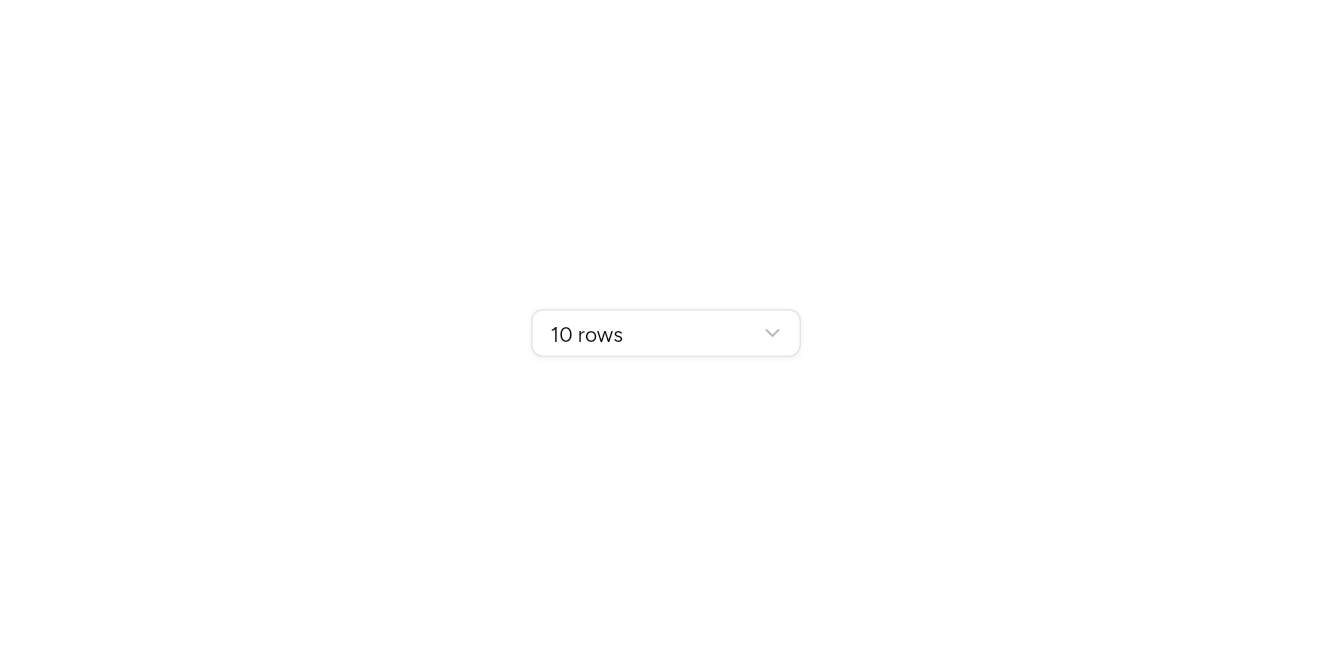

Small

To sit beside small buttons.

Small, as it looks in an app Small, as it looks in an app, dark
// Small: To sit beside small buttons.
import 'package:flutter/widgets.dart';

import 'ui/select.dart';

class SelectSmallExample extends StatefulWidget {
  const SelectSmallExample({super.key});

  @override
  State<SelectSmallExample> createState() => _SelectSmallExampleState();
}

class _SelectSmallExampleState extends State<SelectSmallExample> {
  int? rows = 10;

  @override
  Widget build(BuildContext context) => SizedBox(
    width: 180,
    child: Select<int>(
      size: SelectSize.sm,
      value: rows,
      semanticLabel: 'Rows per page',
      onChanged: (v) => setState(() => rows = v),
      options: [
        for (final n in [10, 25, 50]) SelectOption(n, '$n rows'),
      ],
    ),
  );
}

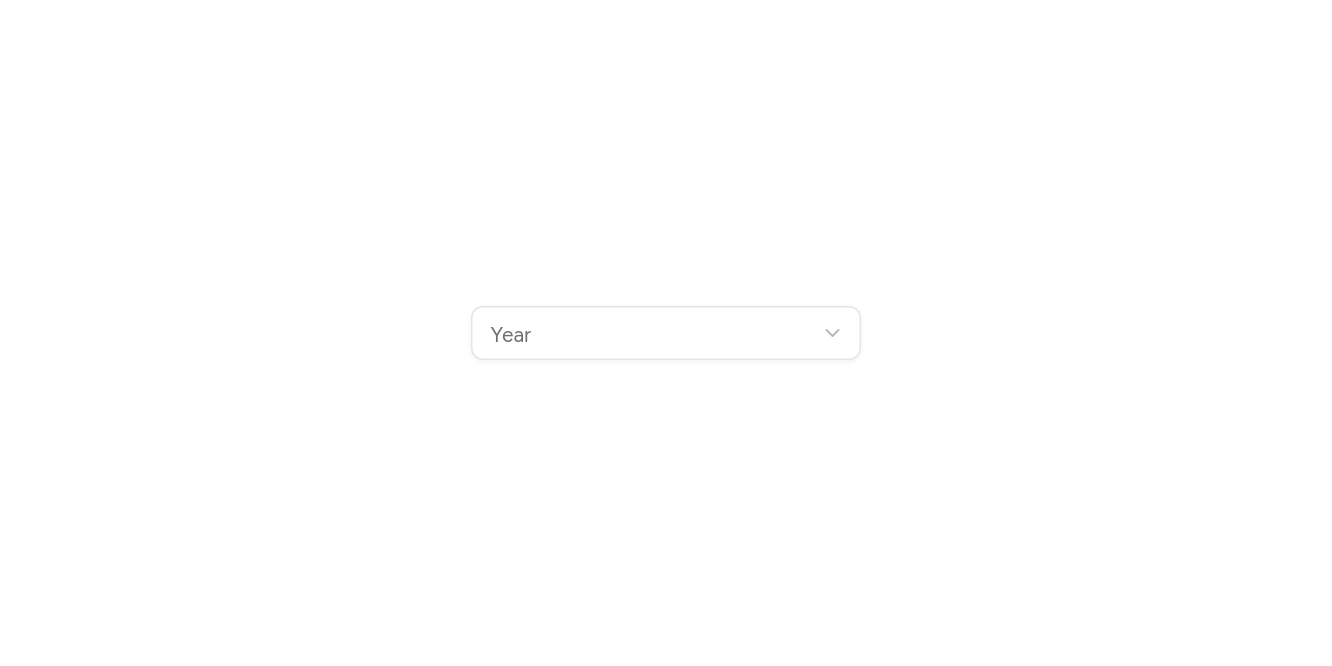

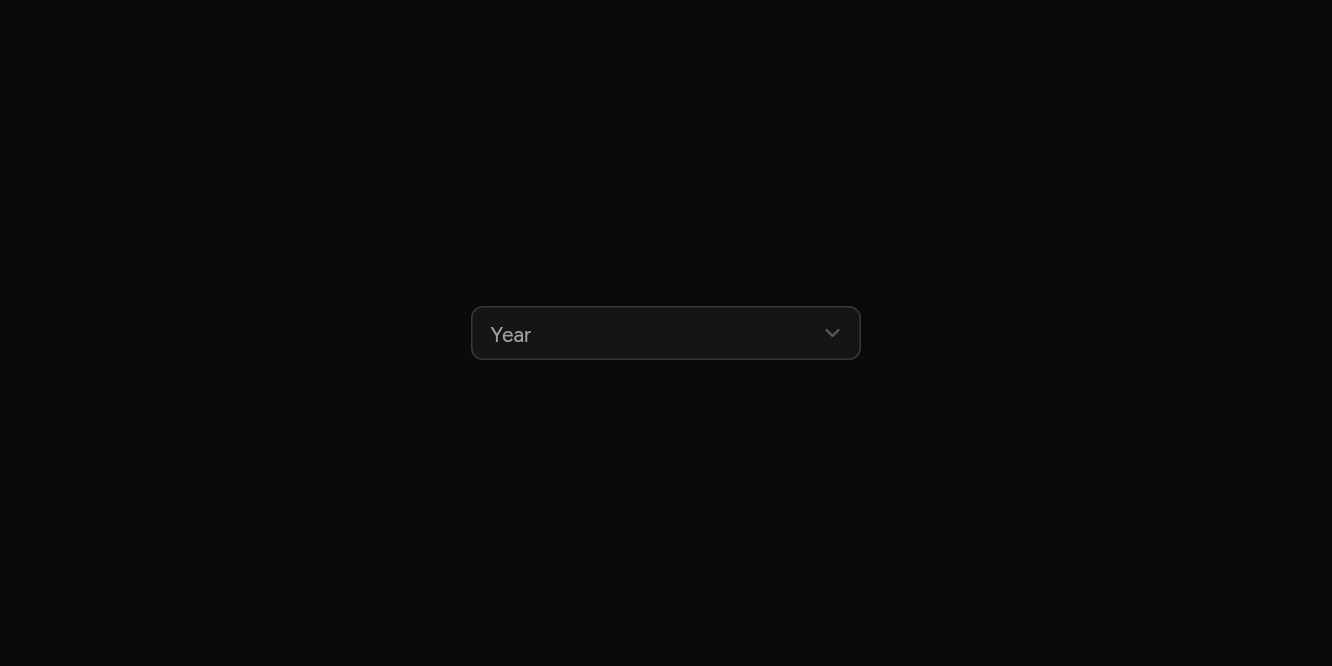

A long list

Built as it scrolls; type to jump.

A long list, as it looks in an app A long list, as it looks in an app, dark
// A long list: Built as it scrolls; type to jump.
import 'package:flutter/widgets.dart';

import 'ui/select.dart';

class SelectLongExample extends StatefulWidget {
  const SelectLongExample({super.key});

  @override
  State<SelectLongExample> createState() => _SelectLongExampleState();
}

class _SelectLongExampleState extends State<SelectLongExample> {
  int? year;

  @override
  Widget build(BuildContext context) => SizedBox(
    width: 260,
    child: Select<int>(
      value: year,
      placeholder: 'Year',
      onChanged: (v) => setState(() => year = v),
      options: [for (var y = 2026; y >= 1900; y--) SelectOption(y, '$y')],
    ),
  );
}

API

Read from the source above: each parameter with its type, its default, and what it is for.

SelectOptionclass

One choice in a Select. Options with the same group are listed together under it.

Parameter Type Default What it is for
valuepositional T The value it stands for.
labelpositional String What the option says.
enabled bool true False fades it and stops it being chosen.
icon Widget? A 16px icon before the label, in the list and in the trigger.
group String? The heading it is listed under; a line separates groups.

SelectSizeenum

ValueWhat it is for
sm32 tall.
md36 tall.

Selectclass

Picks one value from a list that opens under it. It opens on a tap, Enter, Space or the down arrow, on the chosen option. In the list the arrow keys, Home, End, Page Up and Page Down move, typing jumps to the option that starts with what was typed, and Enter picks. Only the rows on screen are built, so a list of thousands is as quick as ten.

Parameter Type Default What it is for
valuerequired T? The value chosen, or null.
optionsrequired List<SelectOption<T>> What can be chosen, in order.
onChangedrequired ValueChanged<T>? Null disables it.
placeholder String? Faint text shown while it is empty.
error bool false Draws it as invalid.
size SelectSize SelectSize.md Small fits beside small buttons.
focusNode FocusNode? Its focus node, to move focus to it or follow it from outside; one is made when not given.
semanticLabel String? What it chooses, for screen readers: 'County'. The chosen option is read after it.

Source

What lands in your app. It is yours from then on: change it as you would your own code, and ashlar add will not write over it.

lib/ui/select.dart 562 lines
// Ashlar UI: Select. Copied into your app by `ashlar add select`; it is yours to change.

import 'dart:async';

import 'package:ashlar_icons/ashlar_icons.dart';
import 'package:flutter/services.dart';
import 'package:flutter/widgets.dart';

import 'popover.dart';
import 'pressable.dart';
import 'theme.dart';

/// One choice in a [Select]. Options with the same [group] are listed together under it.
@immutable
class SelectOption<T> {
  const SelectOption(
    this.value,
    this.label, {
    this.enabled = true,
    this.icon,
    this.group,
  });

  /// The value it stands for.
  final T value;

  /// What the option says.
  final String label;

  /// False fades it and stops it being chosen.
  final bool enabled;

  /// A 16px icon before the label, in the list and in the trigger.
  final Widget? icon;

  /// The heading it is listed under; a line separates groups.
  final String? group;
}

enum SelectSize {
  /// 32 tall.
  sm,

  /// 36 tall.
  md,
}

/// Picks one value from a list that opens under it. It opens on a tap, Enter, Space or the
/// down arrow, on the chosen option. In the list the arrow keys, Home, End, Page Up and
/// Page Down move, typing jumps to the option that starts with what was typed, and Enter
/// picks. Only the rows on screen are built, so a list of thousands is as quick as ten.
///
/// ```dart
/// Select<String>(
///   value: county,
///   placeholder: 'Choose a county',
///   options: [SelectOption('nbo', 'Nairobi', group: 'Cities'), SelectOption('ksm', 'Kisumu', group: 'Cities')],
///   onChanged: (v) => setState(() => county = v),
/// )
/// ```
class Select<T> extends StatefulWidget {
  const Select({
    super.key,
    required this.value,
    required this.options,
    required this.onChanged,
    this.placeholder,
    this.error = false,
    this.size = SelectSize.md,
    this.focusNode,
    this.semanticLabel,
  });

  /// The value chosen, or null.
  final T? value;

  /// What can be chosen, in order.
  final List<SelectOption<T>> options;

  /// Null disables it.
  final ValueChanged<T>? onChanged;

  /// Faint text shown while it is empty.
  final String? placeholder;

  /// Draws it as invalid.
  final bool error;

  /// Small fits beside small buttons.
  final SelectSize size;

  /// Its focus node, to move focus to it or follow it from outside; one is made when not
  /// given.
  final FocusNode? focusNode;

  /// What it chooses, for screen readers: 'County'. The chosen option is read after it.
  final String? semanticLabel;

  @override
  State<Select<T>> createState() => _SelectState<T>();
}

class _SelectState<T> extends State<Select<T>> {
  final _menu = MenuController();
  FocusNode? _ownFocus;
  FocusNode get _focus => widget.focusNode ?? (_ownFocus ??= FocusNode());

  @override
  void dispose() {
    _ownFocus?.dispose();
    super.dispose();
  }

  void _toggle() => _menu.isOpen ? _menu.close() : _menu.open();

  @override
  Widget build(BuildContext context) {
    final t = AshlarTheme.of(context);
    final c = t.colors;
    final chosen = widget.options
        .where((o) => o.value == widget.value)
        .firstOrNull;
    final enabled = widget.onChanged != null;
    return RawMenuAnchor(
      controller: _menu,
      childFocusNode: _focus,
      // Focus goes back to the trigger when the list closes.
      onClose: () => _focus.requestFocus(),
      overlayBuilder: (context, info) => PopoverPanel(
        info: info,
        matchWidth: true,
        child: _SelectList<T>(
          options: widget.options,
          value: widget.value,
          onPicked: (v) {
            _menu.close();
            widget.onChanged?.call(v);
          },
        ),
      ),
      child: Shortcuts(
        shortcuts: const {
          SingleActivator(LogicalKeyboardKey.arrowDown): ActivateIntent(),
        },
        child: Pressable(
          onPressed: enabled ? _toggle : null,
          focusNode: _focus,
          semanticLabel: widget.semanticLabel,
          semanticValue: widget.semanticLabel == null
              ? null
              : (chosen?.label ?? widget.placeholder),
          builder: (context, state) {
            final ring = widget.error ? c.destructive : c.ring;
            return Opacity(
              opacity: state.enabled ? 1 : .5,
              child: AnimatedContainer(
                duration: t.duration,
                // A height at least: larger text makes it taller rather than being cut off.
                constraints: BoxConstraints(
                  minHeight: t.control(widget.size == SelectSize.sm ? 32 : 36),
                ),
                padding: const EdgeInsetsDirectional.only(start: 12, end: 10),
                decoration: BoxDecoration(
                  color: t.brightness == Brightness.dark
                      ? Color.alphaBlend(
                          c.input.withValues(
                            alpha: c.input.a * (state.hovered ? .5 : .3),
                          ),
                          c.background,
                        )
                      : c.background,
                  borderRadius: BorderRadius.circular(t.radiusMd),
                  border: Border.all(
                    color: widget.error
                        ? c.destructive
                        : (state.focused ? c.ring : c.input),
                  ),
                  boxShadow: [
                    if (state.focused)
                      BoxShadow(
                        color: ring.withValues(alpha: widget.error ? .2 : .5),
                        spreadRadius: 3,
                      ),
                    ...t.shadowXs,
                  ],
                ),
                child: IconTheme.merge(
                  data: IconThemeData(color: c.mutedForeground, size: 16),
                  child: Row(
                    children: [
                      if (chosen?.icon != null) ...[
                        chosen!.icon!,
                        const SizedBox(width: 8),
                      ],
                      Expanded(
                        child: Text(
                          chosen?.label ?? widget.placeholder ?? '',
                          maxLines: 1,
                          overflow: TextOverflow.ellipsis,
                          style: t.text.sm.copyWith(
                            color: chosen == null
                                ? c.mutedForeground
                                : c.foreground,
                          ),
                        ),
                      ),
                      const SizedBox(width: 8),
                      AshlarIcon(
                        AshlarIconsRoundedStroke.chevronDown,
                        size: 16,
                        color: c.mutedForeground.withValues(alpha: .5),
                      ),
                    ],
                  ),
                ),
              ),
            );
          },
        ),
      ),
    );
  }
}

/// A row of the open list: a group's heading, a line between groups, or an option.
class _Line<T> {
  const _Line.heading(String this.heading) : option = null;
  const _Line.gap() : heading = null, option = null;
  const _Line.option(SelectOption<T> this.option) : heading = null;

  final String? heading;
  final SelectOption<T>? option;
}

/// The open list: a highlight that keys and the pointer move, built a screenful at a time.
class _SelectList<T> extends StatefulWidget {
  const _SelectList({
    required this.options,
    required this.value,
    required this.onPicked,
  });

  final List<SelectOption<T>> options;
  final T? value;
  final ValueChanged<T> onPicked;

  @override
  State<_SelectList<T>> createState() => _SelectListState<T>();
}

class _SelectListState<T> extends State<_SelectList<T>> {
  static const _row = 32.0,
      _heading = 28.0,
      _gap = 9.0,
      _pad = 4.0,
      _most = 320.0;

  late final List<_Line<T>> _lines = _layout();

  /// Where each option sits among the lines.
  late final List<int> _optionLines = [
    for (final (i, l) in _lines.indexed)
      if (l.option != null) i,
  ];
  late int _at = _start();
  late final ScrollController _scroll = ScrollController(
    initialScrollOffset: _offsetFor(_at),
  );
  String _typed = '';
  Timer? _typing;
  final _focus = FocusNode(debugLabel: 'Select list');

  @override
  void initState() {
    super.initState();
    // Take the keys from the trigger as the list opens: autofocus would leave them there.
    WidgetsBinding.instance.addPostFrameCallback(
      (_) => mounted ? _focus.requestFocus() : null,
    );
  }

  List<_Line<T>> _layout() {
    final lines = <_Line<T>>[];
    String? group;
    for (final (i, o) in widget.options.indexed) {
      if (i == 0 || o.group != group) {
        if (i > 0) lines.add(const _Line.gap());
        if (o.group != null) lines.add(_Line.heading(o.group!));
        group = o.group;
      }
      lines.add(_Line.option(o));
    }
    return lines;
  }

  int _start() {
    final i = widget.options.indexWhere((o) => o.value == widget.value);
    if (i >= 0) return i;
    return widget.options
        .indexWhere((o) => o.enabled)
        .clamp(0, widget.options.length);
  }

  double _extent(_Line<T> l) =>
      l.option != null ? _row : (l.heading != null ? _heading : _gap);

  double _top(int line) {
    var y = _pad;
    for (var i = 0; i < line; i++) {
      y += _extent(_lines[i]);
    }
    return y;
  }

  double get _height => _lines.fold<double>(_pad * 2, (h, l) => h + _extent(l));

  /// Opens with the chosen option in the middle of the list, where it can be seen.
  double _offsetFor(int option) {
    if (_lines.isEmpty || option >= _optionLines.length) return 0;
    final view = _height < _most ? _height : _most;
    return (_top(_optionLines[option]) - view / 2 + _row / 2).clamp(
      0,
      (_height - view).clamp(0, double.infinity),
    );
  }

  @override
  void dispose() {
    _typing?.cancel();
    _scroll.dispose();
    _focus.dispose();
    super.dispose();
  }

  void _go(int to, {int step = 1}) {
    final n = widget.options.length;
    if (n == 0) return;
    // Skip what cannot be picked, in the direction of travel.
    var i = to.clamp(0, n - 1);
    while (!widget.options[i].enabled) {
      i += step;
      if (i < 0 || i >= n) return;
    }
    setState(() => _at = i);
    if (!_scroll.hasClients) return;
    final top = _top(_optionLines[i]), view = _scroll.position;
    if (top - _pad < view.pixels) {
      _scroll.jumpTo((top - _pad).clamp(0, view.maxScrollExtent));
    } else if (top + _row + _pad > view.pixels + view.viewportDimension) {
      _scroll.jumpTo(
        (top + _row + _pad - view.viewportDimension).clamp(
          0,
          view.maxScrollExtent,
        ),
      );
    }
  }

  void _pick() {
    if (_at < widget.options.length && widget.options[_at].enabled) {
      widget.onPicked(widget.options[_at].value);
    }
  }

  /// Typing jumps to the next option starting with what was typed in the last moment.
  void _type(String ch) {
    _typing?.cancel();
    _typed += ch.toLowerCase();
    _typing = Timer(const Duration(milliseconds: 600), () => _typed = '');
    final n = widget.options.length;
    for (var k = _typed.length == 1 ? 1 : 0; k <= n; k++) {
      final i = (_at + k) % n;
      final o = widget.options[i];
      if (o.enabled && o.label.toLowerCase().startsWith(_typed)) return _go(i);
    }
  }

  @override
  Widget build(BuildContext context) {
    final t = AshlarTheme.of(context);
    final c = t.colors;
    final perPage = (_most / _row).floor();
    return Focus(
      focusNode: _focus,
      onKeyEvent: (node, e) {
        if (e is! KeyDownEvent && e is! KeyRepeatEvent) {
          return KeyEventResult.ignored;
        }
        final k = e.logicalKey;
        if (k == LogicalKeyboardKey.arrowDown) {
          _go(_at + 1);
        } else if (k == LogicalKeyboardKey.arrowUp) {
          _go(_at - 1, step: -1);
        } else if (k == LogicalKeyboardKey.home) {
          _go(0);
        } else if (k == LogicalKeyboardKey.end) {
          _go(widget.options.length - 1, step: -1);
        } else if (k == LogicalKeyboardKey.pageDown) {
          _go(_at + perPage);
        } else if (k == LogicalKeyboardKey.pageUp) {
          _go(_at - perPage, step: -1);
        } else if (k == LogicalKeyboardKey.enter ||
            k == LogicalKeyboardKey.space) {
          _pick();
        } else if (e.character != null && e.character!.trim().isNotEmpty) {
          _type(e.character!);
        } else {
          return KeyEventResult.ignored;
        }
        return KeyEventResult.handled;
      },
      child: Semantics(
        container: true,
        explicitChildNodes: true,
        child: Column(
          mainAxisSize: MainAxisSize.min,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            // The highlighted option, read out as it changes.
            Semantics(
              liveRegion: true,
              label: widget.options.isEmpty
                  ? ''
                  : widget
                        .options[_at.clamp(0, widget.options.length - 1)]
                        .label,
              child: const SizedBox(),
            ),
            // Gives way when the room beside the trigger is shorter than the list.
            Flexible(
              child: SizedBox(
                height: _height < _most ? _height : _most,
                child: ListView.builder(
                  controller: _scroll,
                  padding: const EdgeInsets.all(_pad),
                  itemCount: _lines.length,
                  itemExtentBuilder: (i, _) =>
                      i < _lines.length ? _extent(_lines[i]) : null,
                  itemBuilder: (context, i) {
                    final line = _lines[i];
                    if (line.option case final o?) {
                      final index = _optionLines.indexOf(i);
                      return _Option(
                        option: o,
                        lit: index == _at,
                        chosen: o.value == widget.value,
                        onHover: () => o.enabled && index != _at
                            ? setState(() => _at = index)
                            : null,
                        onTap: () => widget.onPicked(o.value),
                      );
                    }
                    if (line.heading case final h?) {
                      return Padding(
                        padding: const EdgeInsetsDirectional.fromSTEB(
                          8,
                          6,
                          8,
                          6,
                        ),
                        child: Semantics(
                          header: true,
                          child: Text(
                            h,
                            style: t.text.xs.copyWith(color: c.mutedForeground),
                          ),
                        ),
                      );
                    }
                    return Container(
                      height: 1,
                      margin: const EdgeInsets.symmetric(vertical: 4),
                      color: c.border,
                    );
                  },
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

class _Option<T> extends StatelessWidget {
  const _Option({
    required this.option,
    required this.lit,
    required this.chosen,
    required this.onHover,
    required this.onTap,
  });

  final SelectOption<T> option;
  final bool lit, chosen;
  final VoidCallback onHover, onTap;

  @override
  Widget build(BuildContext context) {
    final t = AshlarTheme.of(context);
    final c = t.colors;
    final fg = lit ? c.accentForeground : c.popoverForeground;
    return MouseRegion(
      cursor: option.enabled
          ? SystemMouseCursors.click
          : SystemMouseCursors.basic,
      onEnter: (_) => onHover(),
      child: Semantics(
        button: true,
        selected: chosen,
        enabled: option.enabled,
        onTap: option.enabled ? onTap : null,
        child: GestureDetector(
          behavior: HitTestBehavior.opaque,
          onTap: option.enabled ? onTap : null,
          child: Opacity(
            opacity: option.enabled ? 1 : .5,
            child: Container(
              padding: const EdgeInsets.symmetric(horizontal: 8),
              decoration: BoxDecoration(
                color: lit && option.enabled
                    ? c.accent
                    : c.accent.withValues(alpha: 0),
                borderRadius: BorderRadius.circular(t.radiusSm),
              ),
              child: IconTheme.merge(
                data: IconThemeData(color: c.mutedForeground, size: 16),
                child: Row(
                  children: [
                    if (option.icon != null) ...[
                      option.icon!,
                      const SizedBox(width: 8),
                    ],
                    Expanded(
                      child: Text(
                        option.label,
                        maxLines: 1,
                        overflow: TextOverflow.ellipsis,
                        style: t.text.sm.copyWith(color: fg),
                      ),
                    ),
                    SizedBox(
                      width: 16,
                      child: chosen
                          ? AshlarIcon(
                              AshlarIconsRoundedStroke.check,
                              size: 16,
                              color: fg,
                            )
                          : null,
                    ),
                  ],
                ),
              ),
            ),
          ),
        ),
      ),
    );
  }
}
