Breadcrumb

Where a page sits, as links to the pages above it, folding long trails.

import 'package:flutter/widgets.dart';

import 'ui/breadcrumb.dart';

class BreadcrumbDemo extends StatelessWidget {
  const BreadcrumbDemo({super.key});

  @override
  Widget build(BuildContext context) => Breadcrumb(
    items: [
      BreadcrumbItem('Home', onPressed: () {}),
      BreadcrumbItem('Components', onPressed: () {}),
      const BreadcrumbItem('Breadcrumb'),
    ],
  );
}

Add it

In your Flutter project:

$ ashlar add breadcrumb

It writes theme.dart, palette.dart, group.dart, pressable.dart, popover.dart, dropdown_menu.dart and breadcrumb.dart into lib/ui, keeping any you already have, and adds ashlar_icons to pubspec.yaml. It needs pressable, dropdown-menu and ashlar_icons, which come with it.

Examples

Other ways to use it, each running live, with its code.

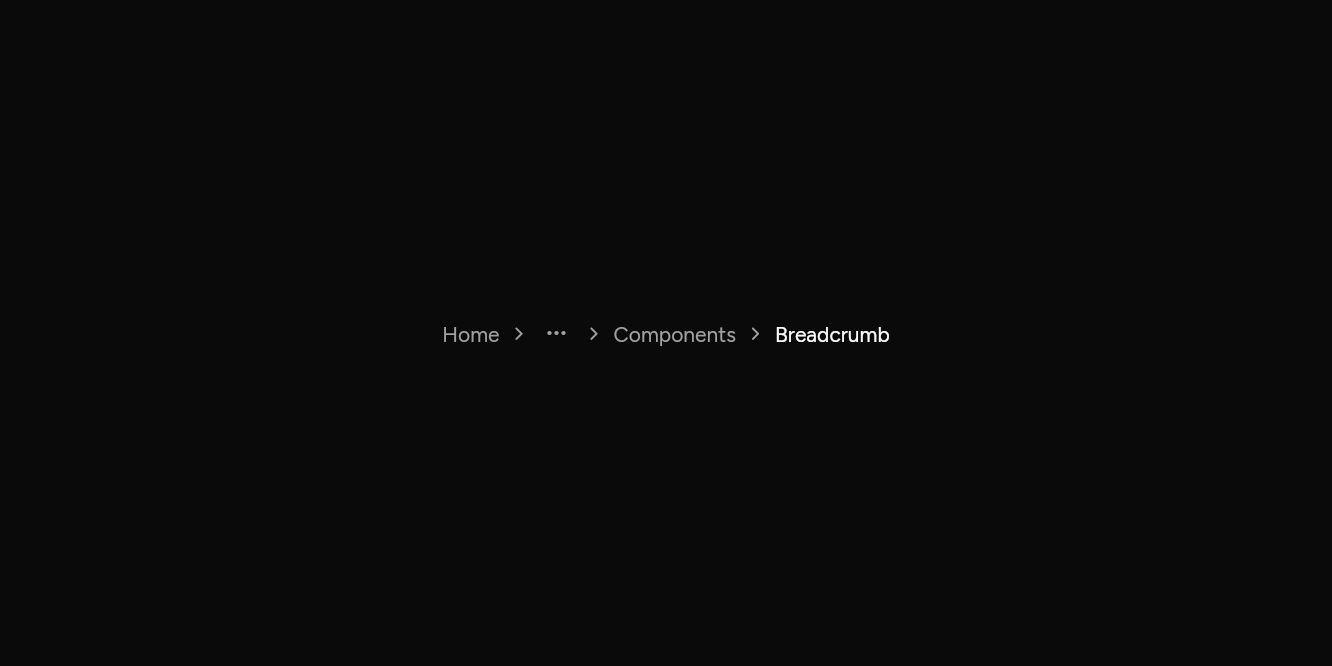

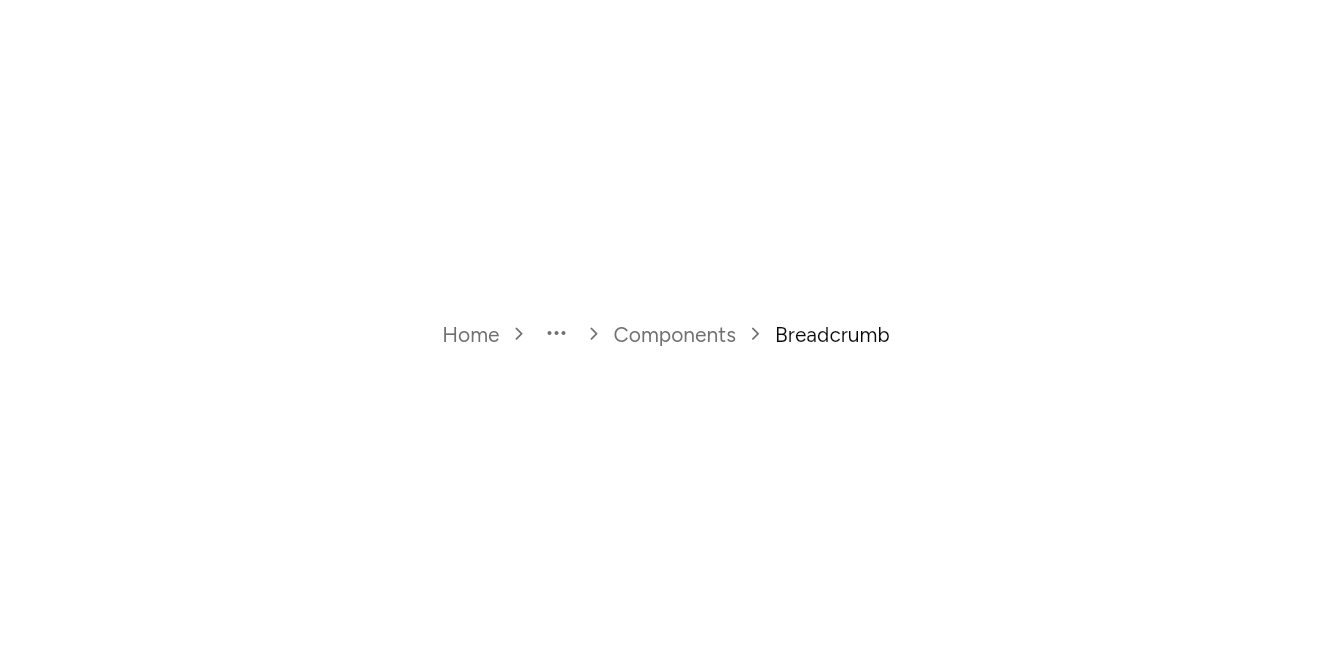

A long path, the middle in a menu.

// Folded in the middle: A long path, the middle in a menu.
import 'package:flutter/widgets.dart';

import 'ui/breadcrumb.dart';

class BreadcrumbCollapsedExample extends StatelessWidget {
  const BreadcrumbCollapsedExample({super.key});

  @override
  Widget build(BuildContext context) => Breadcrumb(
    maxItems: 3,
    items: [
      for (final name in ['Home', 'Projects', 'Ashlar', 'Components', 'Breadcrumb'])
        BreadcrumbItem(name, onPressed: name == 'Breadcrumb' ? null : () {}),
    ],
  );
}

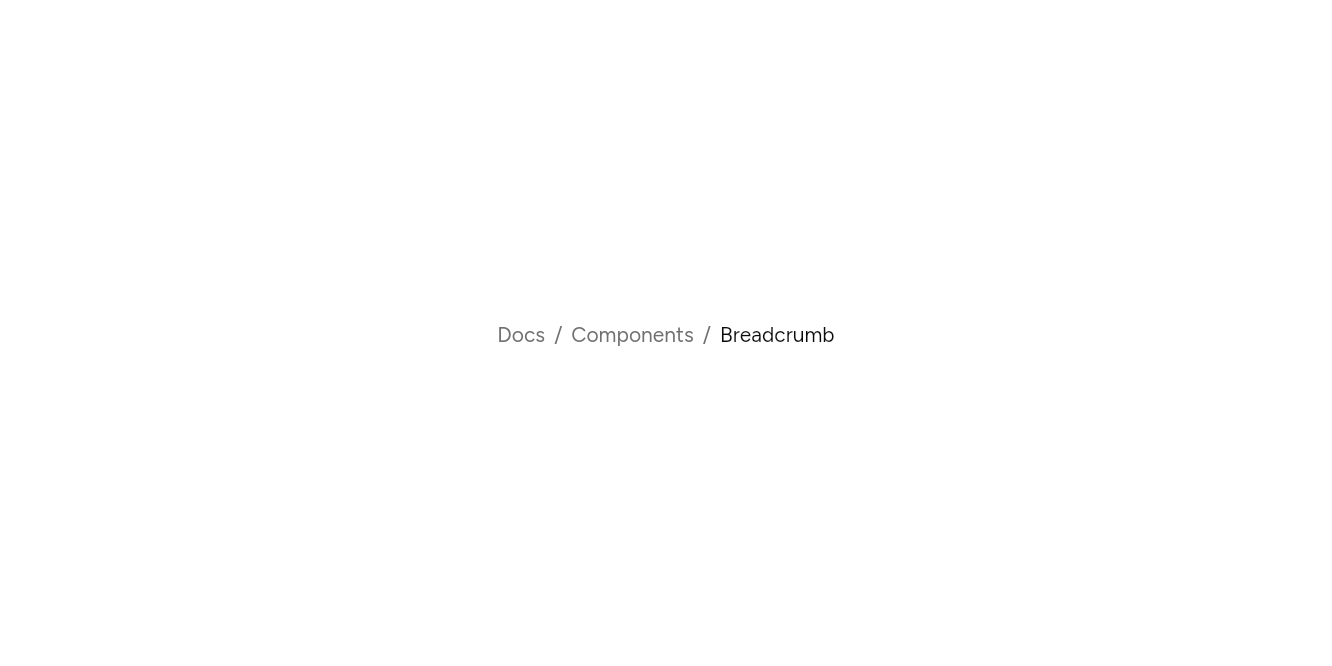

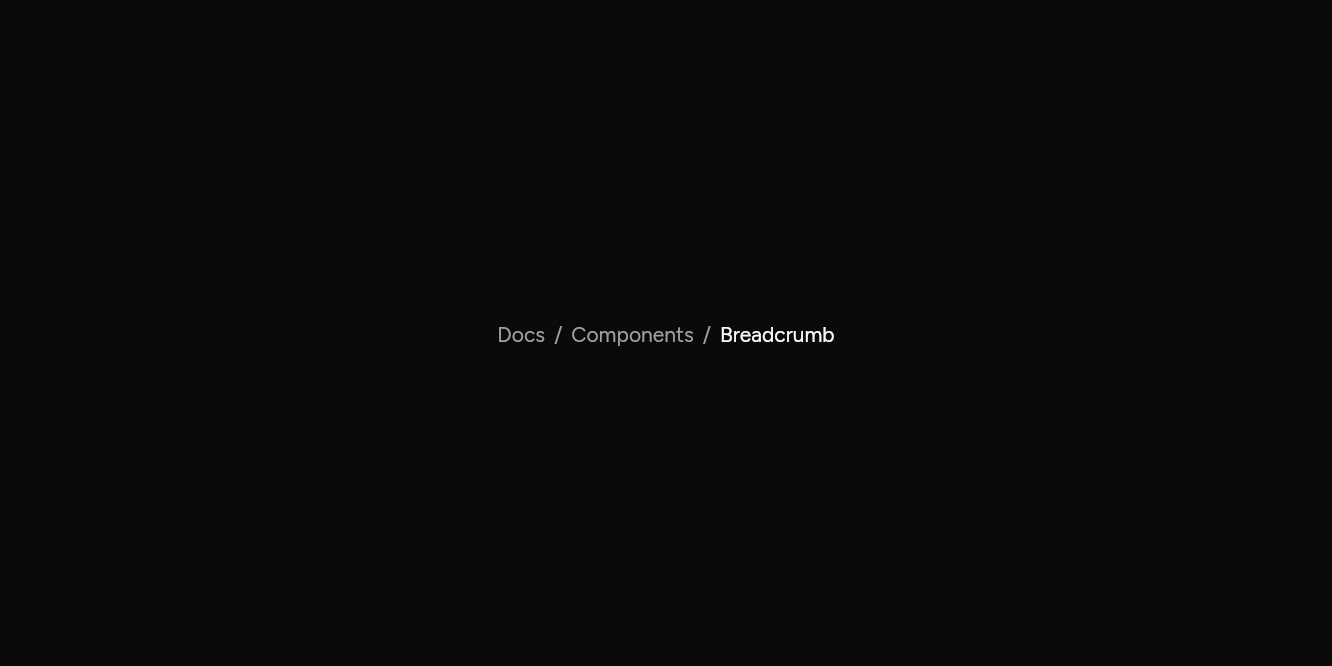

A slash between pages.

// Own separator: A slash between pages.
import 'package:flutter/widgets.dart';

import 'ui/breadcrumb.dart';

class BreadcrumbSeparatorExample extends StatelessWidget {
  const BreadcrumbSeparatorExample({super.key});

  @override
  Widget build(BuildContext context) => Breadcrumb(
    separator: const Text('/'),
    items: [
      BreadcrumbItem('Docs', onPressed: () {}),
      BreadcrumbItem('Components', onPressed: () {}),
      const BreadcrumbItem('Breadcrumb'),
    ],
  );
}

API

Read from the source above: each parameter with its type, its default, and what it is for.

`BreadcrumbItem`class

One step on the way to where you are. The last is the page itself and is not a link.

Parameter	Type	Default	What it is for
`label`positional	`String`		The page's name.
`onPressed`	`VoidCallback?`		Goes to the page. Null for the page you are on.

`Breadcrumb`class

Where a page sits: the pages above it, each a link, then the page itself. Past maxItems the middle steps fold into an ellipsis that opens them as a menu.

Parameter	Type	What it is for
`items`required	`List<BreadcrumbItem>`	The pages, from the top down to this one.
`separator`	`Widget?`	Between steps; a chevron unless given: a slash, a dot.
`maxItems`	`int?`	How many steps show before the middle ones fold away: the first, and the last ones.

Source

What lands in your app. It is yours from then on: change it as you would your own code, and ashlar add will not write over it.

lib/ui/breadcrumb.dart 157 lines

// Ashlar UI: Breadcrumb. Copied into your app by `ashlar add breadcrumb`; it is yours to
// change.

import 'package:ashlar_icons/ashlar_icons.dart';
import 'package:flutter/widgets.dart';

import 'dropdown_menu.dart';
import 'pressable.dart';
import 'theme.dart';

/// One step on the way to where you are. The last is the page itself and is not a link.
@immutable
class BreadcrumbItem {
  const BreadcrumbItem(this.label, {this.onPressed});

  /// The page's name.
  final String label;

  /// Goes to the page. Null for the page you are on.
  final VoidCallback? onPressed;
}

/// Where a page sits: the pages above it, each a link, then the page itself. Past
/// [maxItems] the middle steps fold into an ellipsis that opens them as a menu.
///
/// ```dart
/// Breadcrumb(maxItems: 3, items: [
///   BreadcrumbItem('Home', onPressed: () => go('/')),
///   BreadcrumbItem('Docs', onPressed: () => go('/docs')),
///   BreadcrumbItem('Components', onPressed: () => go('/docs/components')),
///   BreadcrumbItem('Breadcrumb'),
/// ])
/// ```
class Breadcrumb extends StatelessWidget {
  const Breadcrumb({
    super.key,
    required this.items,
    this.separator,
    this.maxItems,
  });

  /// The pages, from the top down to this one.
  final List<BreadcrumbItem> items;

  /// Between steps; a chevron unless given: a slash, a dot.
  final Widget? separator;

  /// How many steps show before the middle ones fold away: the first, and the last ones.
  final int? maxItems;

  @override
  Widget build(BuildContext context) {
    final t = AshlarTheme.of(context);
    final c = t.colors;
    final style = t.text.sm;
    final fold = maxItems != null && items.length > maxItems! && maxItems! >= 2;
    final hidden = fold
        ? items.sublist(1, items.length - (maxItems! - 1))
        : const <BreadcrumbItem>[];
    final shown = fold
        ? [items.first, ...items.sublist(items.length - (maxItems! - 1))]
        : items;
    Widget step(BreadcrumbItem item, bool last) {
      if (last || item.onPressed == null) {
        return Semantics(
          // The page itself: aria-current="page".
          selected: last,
          child: Text(
            item.label,
            style: style.copyWith(
              color: last ? c.foreground : c.mutedForeground,
            ),
          ),
        );
      }
      return Pressable(
        onPressed: item.onPressed,
        link: true,
        builder: (context, state) => Text(
          item.label,
          style: style.copyWith(
            color: state.hovered || state.focused
                ? c.foreground
                : c.mutedForeground,
            decoration: state.focused ? TextDecoration.underline : null,
            decorationColor: c.foreground,
          ),
        ),
      );
    }

    final between = ExcludeSemantics(
      child: IconTheme.merge(
        data: IconThemeData(color: c.mutedForeground, size: 14),
        child: DefaultTextStyle.merge(
          style: style.copyWith(color: c.mutedForeground),
          child:
              separator ??
              AshlarIcon(
                isRtl(context)
                    ? AshlarIconsRoundedStroke.chevronLeft
                    : AshlarIconsRoundedStroke.chevronRight,
              ),
        ),
      ),
    );
    final parts = <Widget>[];
    for (final (i, item) in shown.indexed) {
      if (i > 0) parts.add(between);
      parts.add(step(item, i == shown.length - 1));
      if (fold && i == 0) {
        parts
          ..add(between)
          ..add(
            DropdownMenu(
              builder: (context, menu) => Pressable(
                onPressed: menu.open,
                semanticLabel: 'Show ${hidden.length} more',
                builder: (context, state) => Container(
                  width: 24,
                  height: 24,
                  alignment: Alignment.center,
                  decoration: BoxDecoration(
                    color: state.hovered
                        ? c.accent
                        : c.accent.withValues(alpha: 0),
                    borderRadius: BorderRadius.circular(t.radiusSm),
                    boxShadow: [if (state.focused) ...t.focusRing],
                  ),
                  child: AshlarIcon(
                    AshlarIconsRoundedStroke.ellipsis,
                    size: 16,
                    color: c.mutedForeground,
                  ),
                ),
              ),
              items: [
                for (final h in hidden)
                  MenuItem(onPressed: h.onPressed, child: Text(h.label)),
              ],
            ),
          );
      }
    }
    return Semantics(
      container: true,
      label: 'Breadcrumb',
      explicitChildNodes: true,
      child: Wrap(
        crossAxisAlignment: WrapCrossAlignment.center,
        spacing: 6,
        runSpacing: 4,
        children: parts,
      ),
    );
  }
}
